Description
Description
Invisible Interior Sliding Door Solution for Modern Spaces
Product Overview
The BS02 Invisible Sliding Door System is a concealed door hardware solution designed for flush wall finishes and minimalist interiors. Featuring soft-close dampers and 2D adjustment, it supports wood or laminated doors 30–40mm thick. Ideal for hidden rooms, closets, offices, and modern living spaces.
Key Features
-
🧩 Flush Wall Finish: When closed, the door is perfectly aligned with the wall, creating a clean, uniform look.
-
🔇 Soft Closing Mechanism: Integrated dual-direction dampers ensure smooth, silent opening and closing.
-
🔧 Adjustable Installation: 2D adjustment (up/down, forward/backward) for easy alignment and fine-tuning.
-
🛠 Versatile Compatibility: Suitable for solid wood, plywood, or laminated doors 30–40mm thick.
-
🏢 Ideal for Modern Interiors: Perfect for hidden rooms, walk-in closets, office partitions, and minimalist designs.
Technical Specifications
Item | Specification |
---|---|
Model | BS02 |
Applicable Door Width | 500mm – 1500mm |
Maximum Door Height | ≤ 2700mm |
Door Thickness | 30 – 40mm |
Max Weight Capacity | 80kg |
Track Length | 1.5m |
Material | Aluminum alloy track + Engineering plastic components |
Adjustment Range | ±4mm (vertical), ±4mm (horizontal) |
Soft Close | Dual-direction damping system |
Opening Direction | Left or right sliding |
Surface Finish | Anodized silver (custom colors available) |
Installation Type | Recessed in-wall mounting |
Warranty | 3 years |
Standard Set Includes
-
1 × Aluminum sliding track
-
2 × Silent rollers
-
2 × Soft close dampers
-
2 × Door top connectors
-
1 × Floor guide
-
1 × Screws & installation kit
-
1 × User manual (EN & CN)

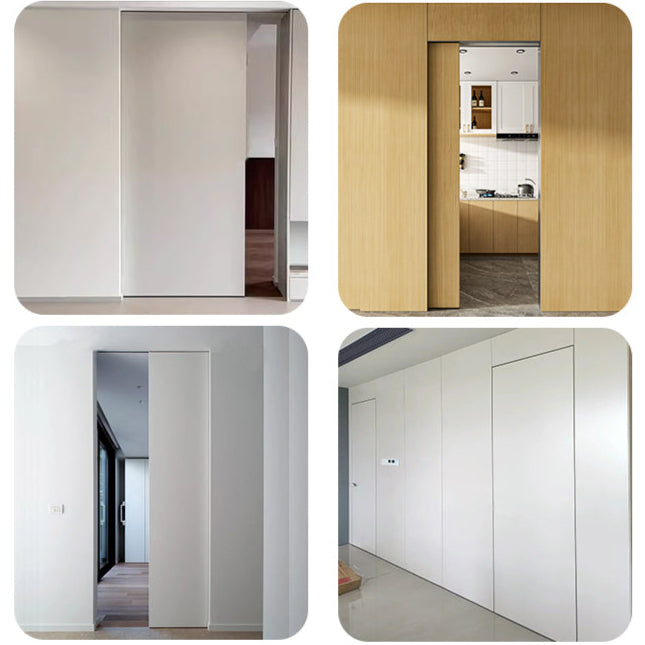

Application ScenariosInterior sliding doors in modern homes
-
Hidden bathroom or walk-in closet doors in luxury hotels
-
Office partitions and meeting room doors
-
Retail and showroom concealed space dividers
Why Choose BS02?
-
Space-Saving: Hidden track system frees up usable space.
-
Aesthetic Appeal: Sleek, flush finish complements minimalist architecture.
-
Smooth & Silent: Built-in dampers offer noise-free operation, ideal for quiet environments.
Important Notes
-
Wall cavity or groove is required to install the concealed track—professional installation is recommended.
-
Door weight should not exceed 80kg for optimal performance and durability.
