Pivot Hinges 75KG Stealthpivot NL
Description
Description

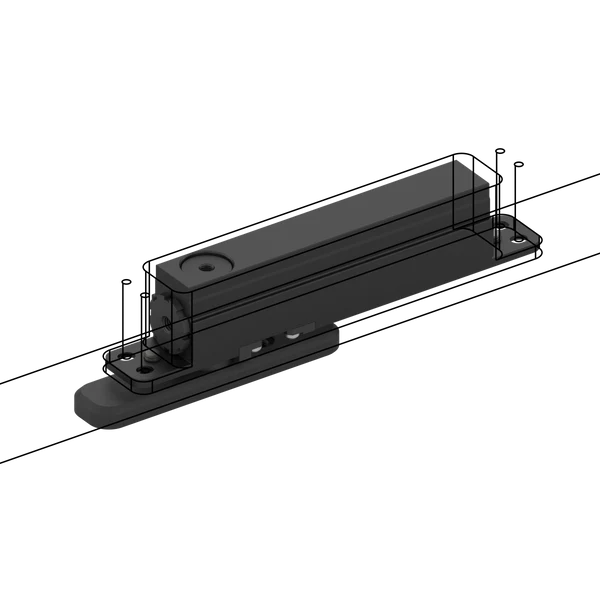

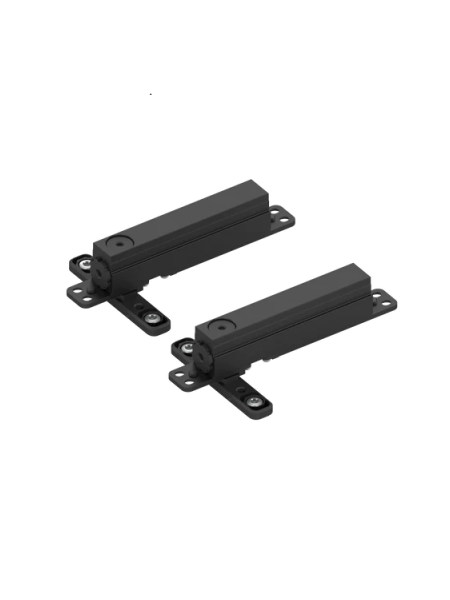

Stealthpivot NL is designed to be mounted on top of a finished solid surface without the need for any built-in fixtures. The hinge is fitted inside the door and therefor remains invisible after installation, hence the name "Stealth pivot".
- Designed for doors up to 75 kg (165 lbs)
- Self-closing technology

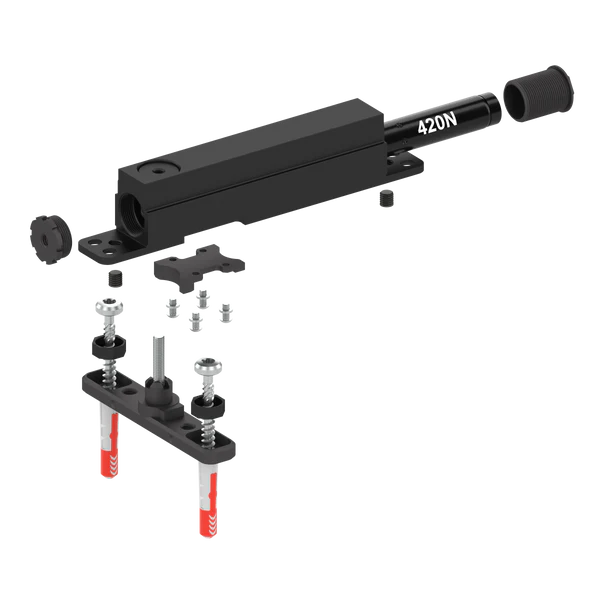

- Fitted with 480N dampers
- Configurable swing operation 180° or 360°
- L 170 mm x H 33 mm x W 25 mm

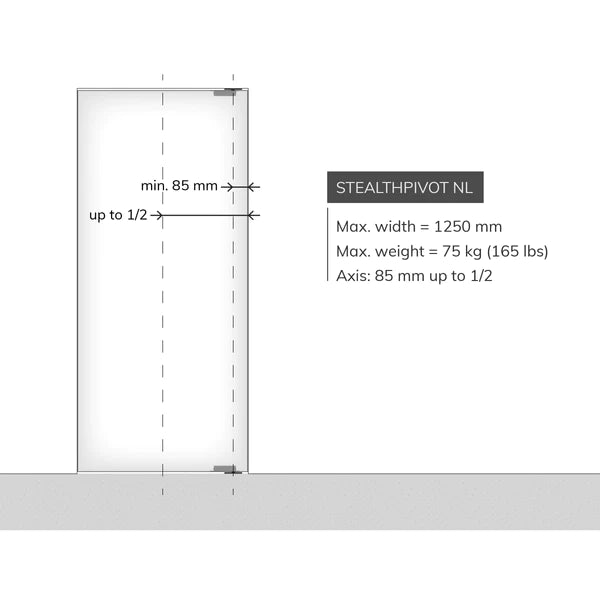

- Variable axis point (min. 85 mm)
- -90° | 0° | +90° open/hold positioning
- Maintenance free design
- 200.000 cycles tested
- Designed for indoor residential use,Suitable for timber doors and aluminium-framed doors
